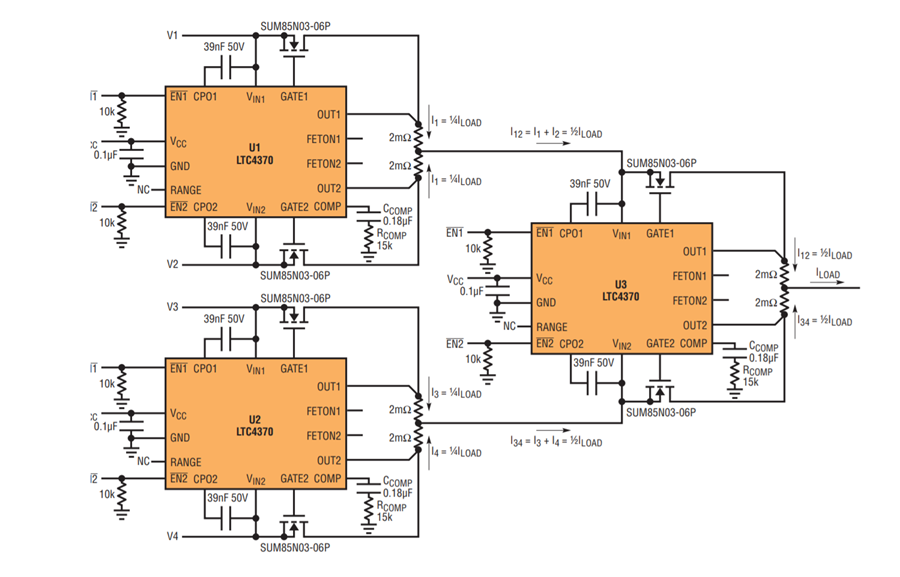

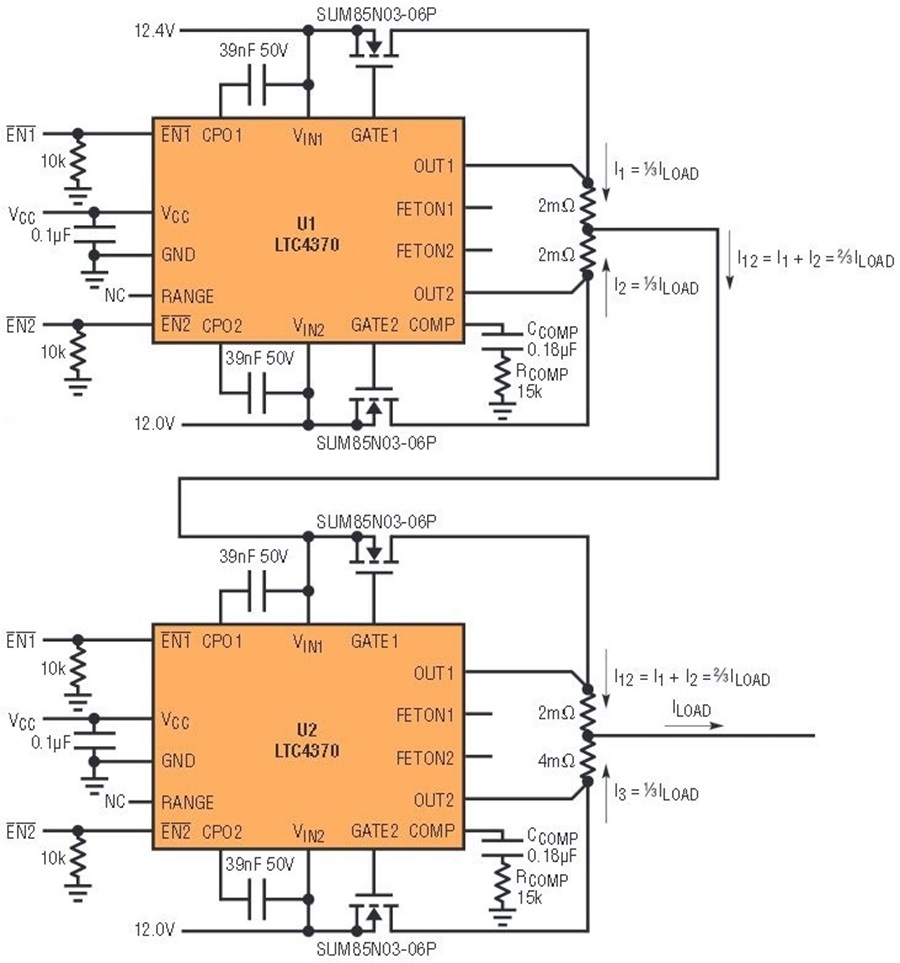

Load sharing power supplies. This solution has been proven to work for 12V-19V input voltages common laptop power supplies and used to provide 10A current to the load. Load sharing efficiency is good enough to allow cascading of these circuits to combine four power supplies. See the tables below for.
Load sharing distributes load currents equally among paralleled voltage-stabilized supplies and can add hot-swap capability. A load-shared power system also allows the addition of power supplies if system requirements change and load currents increase. I made this video to demonstrate a load sharing network for multiple power supplies.
I learned of this technique from RF Mans channel. The video is here h. Paralleling also improves system performance.
When both power supplies are load sharing for example the two supplies share the dissipated heat improving reliability. While its primary function is to supply extra power to a system in which the IO modules demand more power than the communications module can provide the Load Share Power Supply module also can be used to provide redundant power for loads under 3 A 15 W enhancing system reliability. Current sharing is the ability of multiple power supplies to supply a balanced portion of load current when their outputs are connected together.
This technique is being driven by the need for reliable continuous uninterrupted system power. Their forward voltage is adjusted to share the load currents between supplies. Unlike other sharing methods neither a share bus nor trim pins on the supply are required.
The maximum MOSFET voltage drop can be set with a resistor. A fast gate turn-on reduces the load voltage droop during supply switchover. If the input supply fails or is shorted a fast turn-off minimizes reverse current transients.
The above works with supplies of the same voltage and power because the current to the load or buck converter that drives the load will be identical. When you have a 9 volt and 12 volt supply you need to raise or lower one of those voltages to ensure that power delivered to the load is spread proportionally to the power outputs of each supply. Load sharing and redundant power systems - YouTube.
Load Sharing with Paralleled Power Supplies2-1 Output Voltage Droop Method As the name droop would imply this method of paralleling is accomplished by designing the individual power modules with a finite output resistance so that the output voltage falls slightly as the load current is increased. While single-quadrant supplies will only suffer from load-sharing errors two-quadrant supplies will actively contend for control of the common output voltage. This will cause current in excess of the load current to circulate among the supplies in the array and likely lead to immediate overload of one or more of the supplies.
There are two main analog techniques for getting power supplies to share the load - active and droop mode. Active current share uses a signal wire interlinking two or more power supplies. Simply put the voltage on the wire is proportional to the total current supplied to the load.
The simplest method to load sharing is referred to as the droop method. It is an open loop technique which programs the output impedance of the power supplies to obtain load sharing. This method exhibits very poor current sharing at low currents and improves at higher currents but can still have large current imbalances between supplies.
