To get from Ku-Band to the L-Band you would use 10750 MHz as a Local Oscillator mixer frequency and to get from C-Band down to L-Band you would use 5150 MHz as a Local Oscillator mixer to down convert to L-Band. If using multiple bands or multiple systems together the Wireless Frequency Finder results will be invalid.
Select Chebyshev Elliptic Butterworth or Bessel filter type with filter order up to 20 and arbitrary input and output impedances.
L band frequency calculator. 28 rows Satellite frequency to L-band conversion Satellite signals at C-band and Ku-band frequencies are converted down to L-band in the focal point of many dish antennas by a Low-Noise Block Down-Converter LNB. In the United States the receivers for domestic satellites usually use the conversion shown below. 67 rows LTE frequency band and arfcn calculator.
This frequency conversion calculator takes the input frequency band and converts it to output upper and lower sidebands. If frequency spectral inversion occurs a message is place above the Lower Sideband area. If frequency folding occurs a message is placed next to the LSB Lower frequency area.
The mixer frequencies that are used to get from one band to another are as follows. To get from Ku-Band to the L-Band you would use 10750 MHz as a Local Oscillator mixer frequency and to get from C-Band down to L-Band you would use 5150 MHz as a Local Oscillator mixer to down convert to L-Band. Frequency and to get from C-Band down to L-Band you would use 5150 MHz as a Local Oscillator mixer to down convert to L-Band.
The lower product of the mixer is always used to avoid the harmonics of the signal and to keep it from interfering with the converted signal. The advantages of using an LNB at the dish and conversion to the L-Band are. 34 rows Center Frequency for varying Mhz full transponder bandwith.
To obtain the L-band. DB Calculator add dB dBA INERTANCE share the sound calculator dB calculator. This calculator includes 11 octave band frequency noise level summation Add dB dB plus dBA dBA etc.
Client can understand how to use this calculator. A band pass filter lets only a certain frequency band pass through and attenuates frequencies below and above. This article shows you different circuit variants of passive bandpass filters.
In addition to the formulas you will find handy band pass calculators for easy calculation of the filter. The IF Intermediate Frequency is generated by mixing two frequencies viz. Input frequency F in1 or F in2 and Local Oscillator frequency F LO1 or F LO2.
F in1 and F LO1 are provided to RF Mixer to generate F IF1 as sum of these two frequencies during up conversion process. Being a relatively low frequency L-band is easier to process requiring less sophisticated and less expensive RF equipment and due to a wider beam width the pointing accuracy of the antenna does not have to be as accurate as the higher bands. Only a small portion 13-17GHz of L-Band is allocated to satellite communications on Inmarsat.
Calculate LC filters circuit values with low-pass high-pass band-pass or band-stop response. Select Chebyshev Elliptic Butterworth or Bessel filter type with filter order up to 20 and arbitrary input and output impedances. Typically from the indoor modem to the BUC is L band frequency and sometimes 70MHx Intermediate Frequency IF due to the high losses when higher frequencies are transmitted over coax.

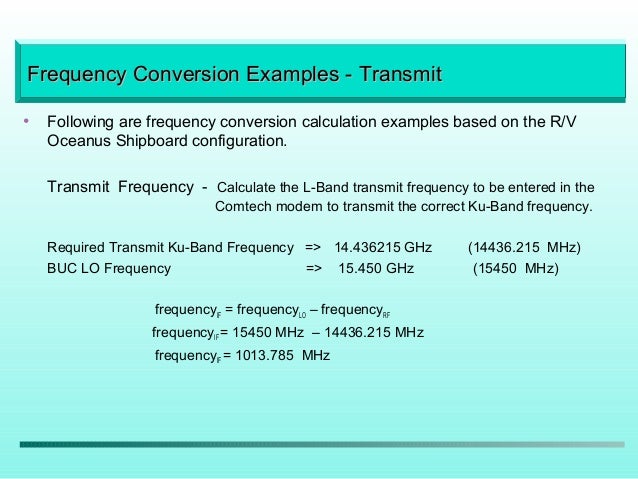

The BUC will then convert this frequency with the Local Oscillator LO frequency to output the C Ku or Ka band for transmission to the satellite. 5G frequency band and nr-arfcn calculator. X-band radar frequency sub-bands are used in civil military and government institutions for weather monitoring air traffic control maritime vessel traffic control defense tracking and vehicle speed detection for law enforcement.
Ku-band 1218 GHz Used for satellite communications. In Europe the Ku-band downlink is used from 107 GHz. LTE frequency band and arfcn calculator.
