The movable member is connected to the control mechanism by stainless steel bellows. A vacuum breaker is an attachment commonly placed on a bibcock valve or toilet or urinal flush valve that prevents water from being siphoned backward into the public drinking water system.
The movable member is connected to the control mechanism by stainless steel bellows.
How vacuum breakers work. The vacuum breaker breaks the unwanted vacuum inside a closed system. A Vacuum Breaker is a device that helps the air to fill the vacuum created inside a steam piping system thus preventing sudden collapse temperature fluctuations and the possibility of water hammer. Vacuum breakers provide a simple dependable way to relieve unwanted vacuum which may develop in a closed vessel or pipeline.
In this video we demonstrate h. How It Works. A pressure vacuum breaker consists of a check device or check valve and an air inlet that is vented to the atmosphere open-air.
The check valve is designed to allow water through and keep the air inlet closed during normal conditions. When the air pressure is greater than the water pressure the vented chamber opens and breaks the suction effect of the low pressure. The purpose of a vacuum breaker is to stop back siphonage.

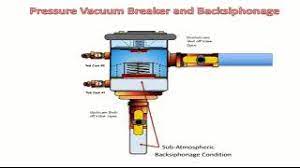

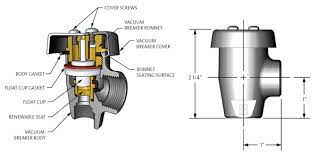

The atmospheric vacuum breaker consists of a check valve member and an air vent that is normally closed when the device is pressurized. The air vent allows air into the piping system for the purpose of stopping a siphon at the point of use see Figure A. This is an instructional video on how a pressure vacuum breaker works to protects the potable water system.
A vacuum breaker is an attachment commonly placed on a bibcock valve or toilet or urinal flush valve that prevents water from being siphoned backward into the public drinking water system. This prevents contamination should the public drinking water systems pressure drop. One may also ask is vacuum breaker same as backflow preventer.
This is the same function that the. Typical parts of the vacuum circuit breaker are shown in the figure. It consists of fixed contact moving contact and arc shield mounted inside a vacuum chamber vacuum interrupter.
It is shown as an insulating vessel in the given figure. The movable member is connected to the control mechanism by stainless steel bellows. Vacuum breakers or vacuum relief regulators also use a spring-loaded diaphragm mechanism but the pressure is controlled through the outlet port instead of the inlet port.
Vacuum breakers adjust the pressure in a system by opening the exit port to increase application pressure and reduce the vacuum level. It has a very simple construction in comparison to an air circuit breaker or oil circuit breaker. In a vacuum circuit breaker VCB current carrying contacts are separated in the vacuum.
The separation of contacts and interruption of arc occurs in a vacuum chamber in the VCB which is known as vacuum interrupter. Brief detail of above types are given in bellowCircuit breakers have their contacts immersed in oil. Current disconnect takes place in oil which cools the arc developed and thereby cool the arc.
There are three poles in this oil circuit breaker which use to protect 3 phases. A vacuum breaker is one of several devices designed to prevent water that leaves the faucet from flowing back into the plumbing system. Vacuum breakers do this by preventing backflow and back siphoning from occurring.
Any place where water is supplied for any use other than drinking water needs a vacuum breaker installed. A vacuum breaker is an attachment commonly placed on a bibcock valve or toilet or urinal flush valve that prevents water from being siphoned backward into the public drinking water system. This prevents contamination should the public drinking water systems pressure drop.
How do you remove a vacuum breaker from a hose bib. How Does a Vacuum Breaker Work. By creating an air gap between a possible source of contamination and the plumbing system a breaker can protect the water supply.
The breaker is made up of a variety of parts. The check valve member air vent and hose are all implemented to fight possible water contamination.
